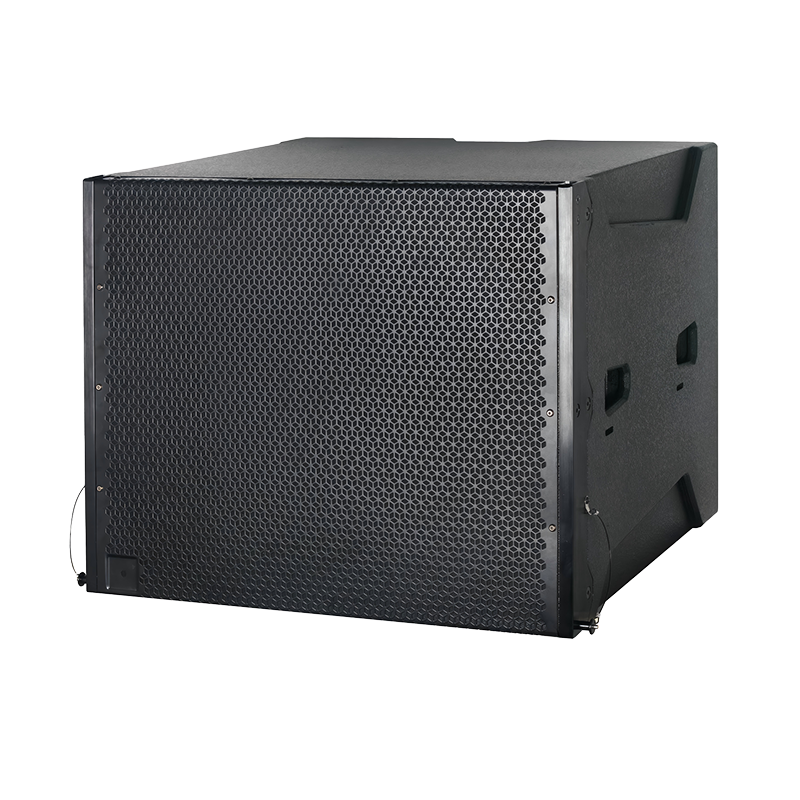

Model: LR- 18S

Spcification详细参数

Frequency response(-5 dB standard) 频率响应

33Hz-400KHz

Power handling capacity (RMS/peak 10 ms)功率

800W/1600W

Nominal impedance 标称阻抗

8Ω

Sensitivity(1M/W) 灵敏度

98dB

Max SPL 最⼤声压级

131dB

Nominal dispersion angle(h xv) 覆射⻆度

120°x7°

Components 单元配置

低⾳1x18 ″220磁/100芯

Connections 连接⽅式

2xNL4

Suspension Point 吊挂点

Enclosure Material 箱体材质

18mm多层夹板

Surface treatment 表⾯处理

⽔性点漆

Dimensions( H x W x D)⾼宽深 箱体尺⼨

550x680x680mm

Weight净重

50kg
